Automatic Watering System
This system monitors soil moisture levels and automatically activates irrigation as needed, ensuring plants' root zones receive adequate water. It promotes healthy crop growth while conserving water resources.
Human Motion Sensing System
The infrared-based automatic lighting system uses motion detection to activate lighting as needed. It enhances safety and convenience by responding to human or object movement.
Light Sensing System
The light-sensitive resistor-based auto lighting system detects ambient light intensity and automatically turns lights on or off. It provides stable illumination conditions, adapting to varying lighting needs throughout the day.

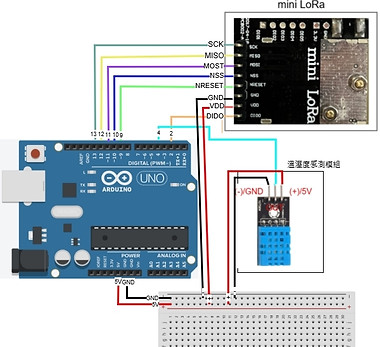

Sensor Communication
This system uses LoRa technology for data transmission and integrates DHT sensors for temperature and humidity detection. It enables real-time environmental data monitoring over long distances.
System Overview
This system integrates data from all sensors, including soil moisture, light-sensitive resistors, and infrared motion detection, providing comprehensive environmental monitoring and intelligent automated control.
Receiver Communication
This system integrates ESP8266, LoRa, and WiFi technologies to enable remote data transmission. Data is sent using LoRa, received, and then uploaded to the Blynk platform via ESP8266 WiFi. This allows users to monitor system status in real-time from anywhere. Additionally, the received data is displayed on the OLED display, providing immediate on-site monitoring of system status.
Blynk Real-time Plant Data Monitoring
With the Blynk platform, users can monitor real-time data of plants anytime online. The displayed data includes temperature, humidity, light intensity, presence of people, whether the lights are on, and whether watering has occurred. This data helps users understand the plant's growing conditions and make adjustments as needed to ensure optimal care for the plants.
